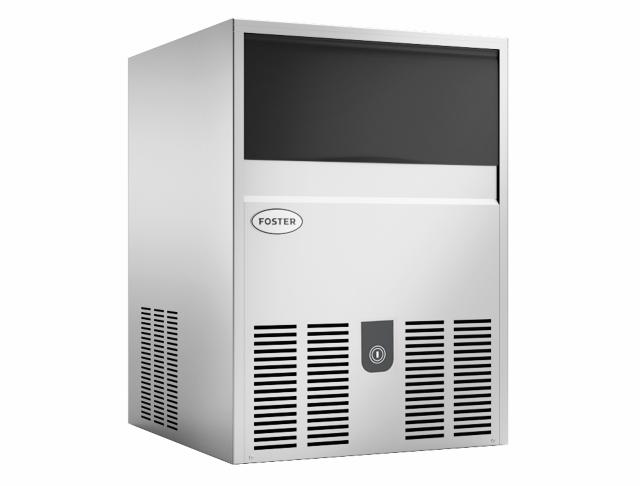

FS40: 37kg Integral Ice Cuber

27-118

Air cooled ice cuber

About the product

Foster Ice Machines produce high quality ice, free from impurities.

Available to finance with our award-winning interest-free credit and leasing

Learn more about our Drinks Service range

Take a look inside the glass froster

Specification

Technical

Refrigerant
R290
Electrical supply
220-240/50/1
Fuse rating (A)
10
Current (A)
3.5
Power (W)
480
Refrigerant mass (g)
70

Dimensions

Height (mm)
690
Width (mm)
500
Depth (mm)
540
Net volume (ltr)
15
Bin Capacity (kg)
15
Leg type
Feet
Gross weight (kg)
47
Net weight (kg)
38

Build

Section configuration
System
Integral

Energy

Bin Capacity (kg)
15
Climate Class
5
AEC (kWh)
2851.38
Energy consumption (kWh/24hr)
7.81
GWP
3



Features and benefits

  • Innovatively designed with new user-friendly electro-mechanical controls to ensure reliability
  • The models also incorporate a condenser thermostat, which ensures a full harvest of cubes
  • Produces ultra cold square cubes that last longer in the glass, ice bucket and the machine's storage bin
  • Uses as little as 5 litres of water to produce 1 kilo of ice - important where water is metered.
  • The new flush system ensures clear ice free from impurities and eliminates the risk of lime-scale
  • Bin capacity: 15 kgs
  • Ice: Cubed 35x37x32mm

Product downloads
Download all available product assets here.

Footnotes

  • A minimum clearance of 15cm (6") must be left at the sides of the machine for routing cooling air drawn into and exhausted out of the compartment to maintain a proper condensing operation
  • Maximum ambient air temperature 40ºC; maximum input water temperature 35ºC
